Sensor Details

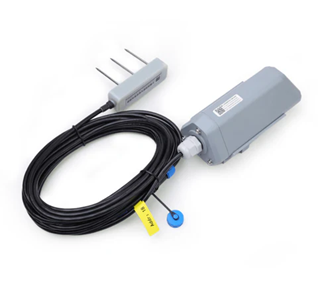

Soil Moisture, Temperature and Pore EC sensor

SenseCAP S2108 Sensor measures moisture, temperature and Pore EC at the range of 0 ~ 100% (m³/m³), -40 ~ 80℃ and 0 to 20 ms/cm(Bulk), 0 to 32ms cm(Pore) respectively. S2108 can be widely applicable in soil sensing scenarios. This sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes. It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.

$778.57 NZD

- +
Add To Cart
Applications
  • Science Research
  • Smart Agriculture (outdoor & greenhouse)
  • Irrigation Management
  • Pest Control
  • Bacteria Prevention
  • Horticulture & Forestry Management
Features
  • Compact with high Integration: 3-in-1 sensor with temperature, moisture and electrical conductivity
  • Supporting MODBUS-RTU RS485 output Interface
  • Strong robustness: water, ice, foggy detection
  • Industrial-grade design: IP68 rated, waterproof and dustproof, suitable for harsh environments
  • Industry standards: high accuracy with excellent stability
  • Reverse power protection and Built-in TVS/ESD protection
Note

Soil Temperature: Range: -40 to +80 ℃, Accuracy: ±0.5 ℃

Soil Moisture (Volumetric Water Content): Range: 0 to 100%, Accuracy: 0 to 50%: ±2%, 50 to 100%: ±3%

Electrical Conductivity (Pore EC): Range: 0 to 32 mS/cm, Accuracy: 0 to 10 mS/cm: ±3%, 10to 20 mS/cm: ±5%
