Sensor Details

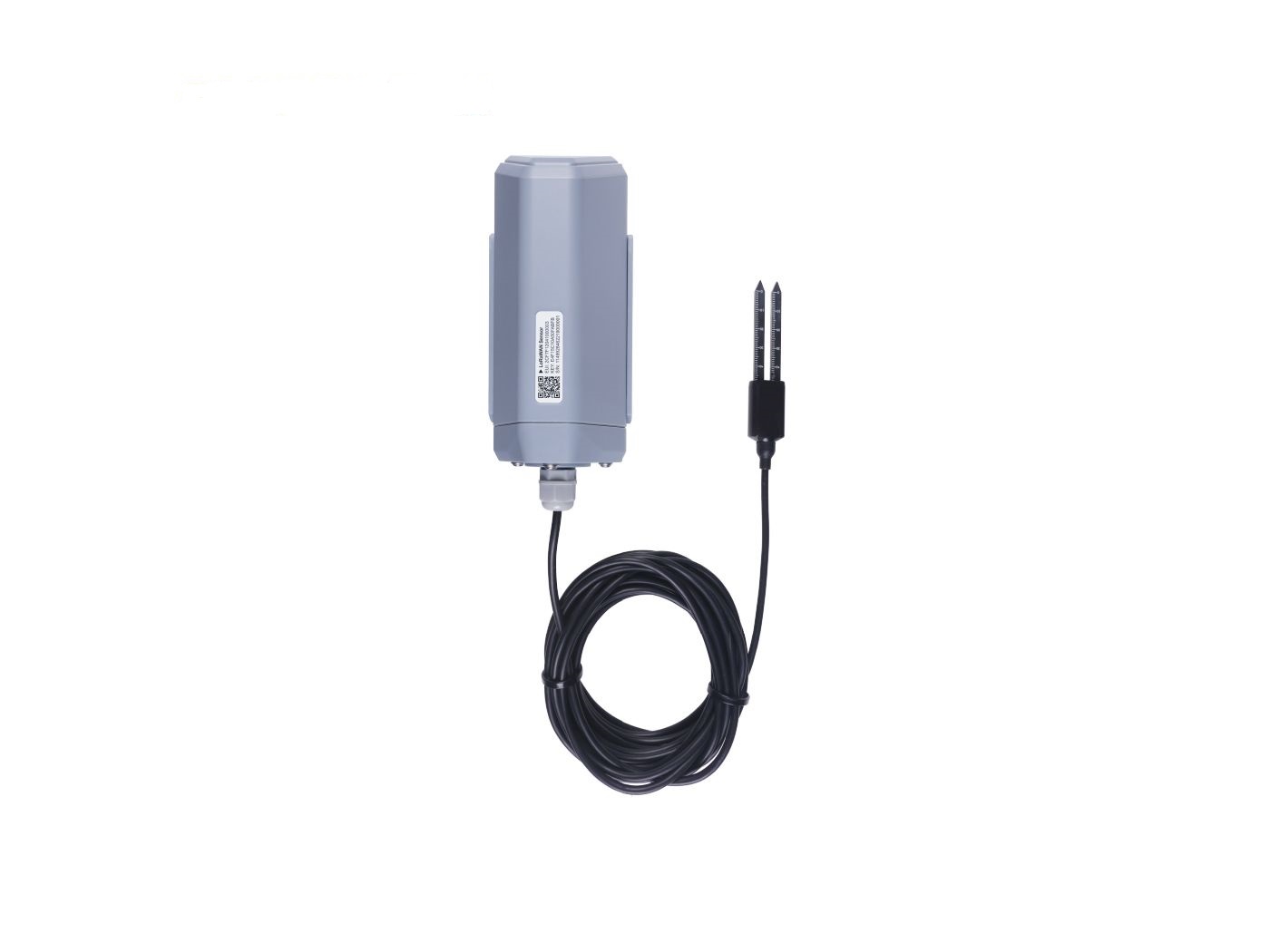

Soil Moisture, and Temperature Sensor

SenseCAP S2104 Sensor measures soil moisture and temperature at the range of 0 ~ 100% (m³/m³) and -40 ~ 80℃ respectively, making it widely applicable in soil sensing scenarios. This sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes. It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments.

$391.39 NZD

Applications
  • Science Research
  • Smart Agriculture (outdoor & greenhouse)
  • Irrigation Management
  • Pest Control
  • Bacteria Prevention
  • Horticulture & Forestry Management
Features
  • Compact with high Integration: 2-in-1 sensor with temperature and moisture
  • Supporting MODBUS-RTU RS485 output Interface
  • Strong robustness: water, ice, foggy detection
  • Industrial-grade design: IP68 rated, waterproof and dustproof, suitable for harsh environments
  • Industry standards: high accuracy with excellent stability
  • Reverse power protection and Built-in TVS/ESD protection
Note

Soil Temperature: Range: -40 to +80 °C, Accuracy: 0 to 50°C: ±0.5 °C, -40 to 0, 50 to 80°C: ±1°C

Soil Moisture (Volumetric Water Content): Range: 0 to 100% (air-water), Accuracy: 0 to 50%: ±3%, 50 to 100%: ±5%
